39mm Nema16 Hybrid Stepper Motor 0.17Nm 4 Leads 1.8 Step Angle
Specifications
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) |
| Max Axial Force | 10N |
| Step Angle | 1.8 ° |
| Lead Wire Number | 4 |
| Resistance | 28Ω |
| Inductance | 21mH |
Product Description
39mm Nema16 Hybrid Stepper Motor 0.28Nm 4 Leads 1.8 Step Angle 2.8KG
The construction of a hybrid stepper motor can be done using the principles of two motors like a permanent magnet & variable reluctance stepper motor. These kinds of motors are available with different step resolutions.The standard step resolution of this motor is 1.8°.
The hybrid stepper motor show high static & dynamic torque & run characteristics at extremely high step rates, so, these motors are mainly used in industrial applications. The essential parts in Hybrid Stepper motor are stator and rotor because these two connect the hybrid motor. This motor includes a tooth similar to projections. These teeth are connected in different configurations throughout the rotation.
Electrical Specification
| MODEL | Step Angle (°/Step) |
Lead Wire (NO.) |
Voltage (V) |
Current (A/Phase) |
Resistance (Ω/Phase) |
Inductance (MH/Phase) |
Holding Torque (G.CM) |
Motor Height L(MM) |
Motor Weight (KG) |
|
39BYGX001A |
1.8 |
4 |
13.44 |
0.48 |
28 |
21 |
1000 |
20 |
0.10 |
|
39BYGX002A |
1.8 |
4 |
8.4 |
0.7 |
12 |
11 |
1200 |
20 |
0.10 |
|
39BYGX100A |
1.8 |
4 |
12 |
0.4 |
30 |
20 |
1300 |
22 |
0.12 |
|
39BYGX200A |
1.8 |
4 |
14.4 |
0.4 |
36 |
33 |
1700 |
25 |
0 |
*Products can be customized by special request.

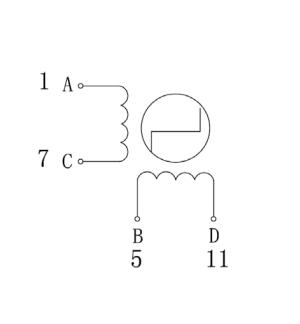

Wiring Diagram

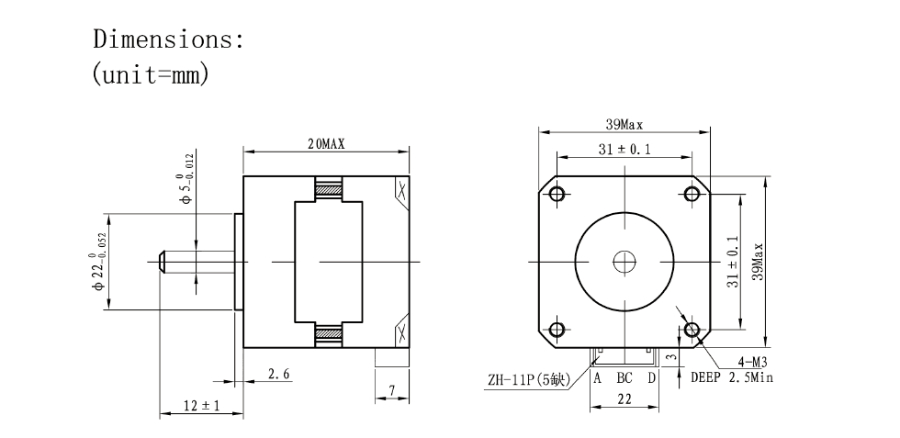

Mechanical Dimension
Product Range
Production Process
Inspection process
Strict inspection process to ensure that every product is a qualified product，the quality is guaranteed。
Certificate
