42mm Nema17 Hybrid Stepper Motor 4 Leads 6 Wire 1.8 Step Angle 0.30KG
Specifications
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 28N (20mm From Front Flange) |
| Max Axial Force | 10N |
| Step Angle | 1.8 ° |
| Lead Wire Number | 4,6 |
| Motor Weight(Kg) | 0.20/0.24/0.30/0.34/0.49 |
| Current (A) | 0.25/0.3/0.4/1/1.5/1.7 |
Product Description
42mm Nema17 Hybrid Stepper Motor 4 Leads 6 Wire 1.8 Step Angle 0.30KG
The Industrial applications of stepping motor include high-speed pick and place equipment and multi-axis CNC machines, often directly driving lead screws or balls crews. In the field of optics, they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems. Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives and many more devices.
Electrical Specification
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (G.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|
42BYGH208-52A |
1.8 |
4 |
12 |
0.4 |
30 |
42 |
2500 |
34 |
0.20 |
|
42BYGH243-03 |
1.8 |
4 |
2.6 |
1 |
2.6 |
3.2 |
1800 |
34 |
0.20 |
|
42BYGH622-28A |
1.8 |
4 |
4.8 |
1 |
4.8 |
6.0 |
2900 |
40 |
0.24 |
|
42BYGH613-68A |
1.8 |
4 |
2.5 |
1.7 |
1.5 |
2.5 |
3500 |
40 |
0.24 |
|
42BYGH705-07 |
1.8 |
4 |
12 |
0.3 |
40 |
80 |
4000 |
44 |
0.30 |
|
42BYGH721A |
1.8 |
6 |
10 |
0.25 |
40 |
36 |
2000 |
44 |
0.30 |
|
42BYGH801-36 |
1.8 |
6 |
12 |
0.4 |
30 |
22 |
3800 |
48 |
0.34 |
|
42BYGH872A |
1.8 |
4 |
2.8 |
1.7 |
1.65 |
2.8 |
4500 |
48 |
0.34 |
|
42BYGH910-02 |
1.8 |
4 |
5.1 |
1.5 |
3.4 |
8.0 |
8500 |
60 |
0.49 |
|
42BYGH905-13 |
1.8 |
4 |
3.15 |
1.5 |
2.1 |
5.0 |
6800 |
60 |
0.49 |
*Products can be customized by special request.

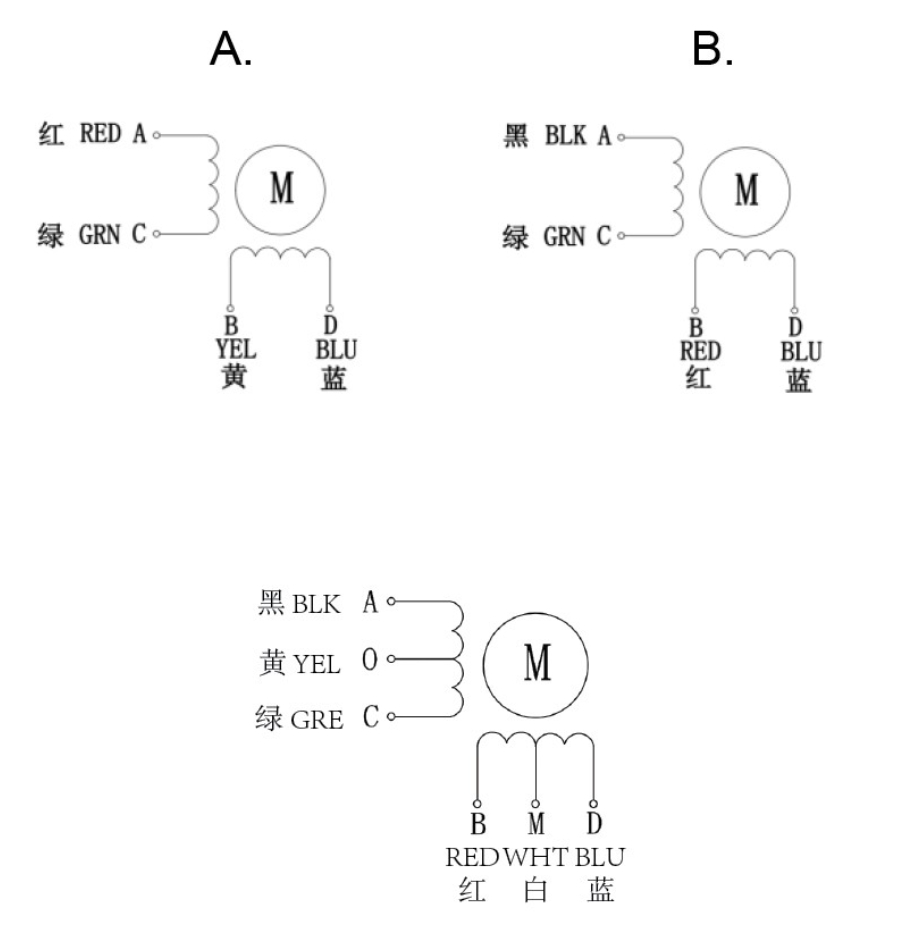

Wiring Diagram

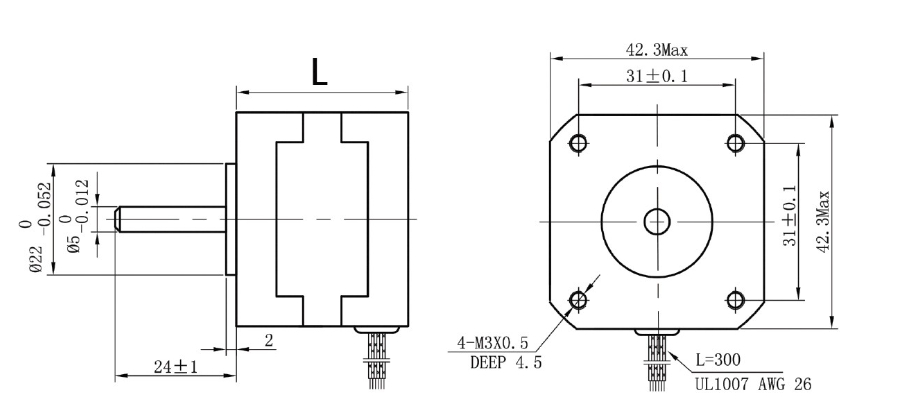

Mechanical Dimension
Product application
This model of product is widely used in smart pointers.

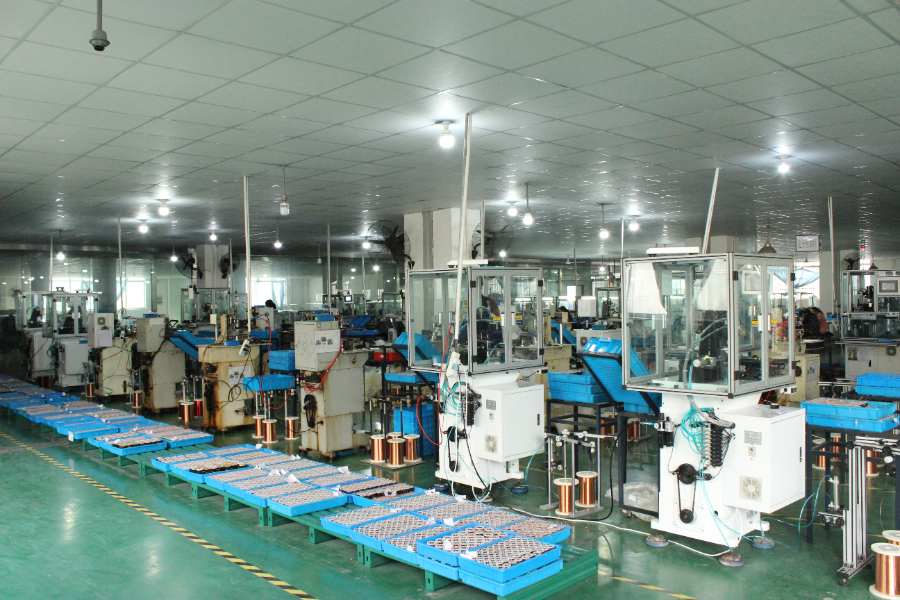

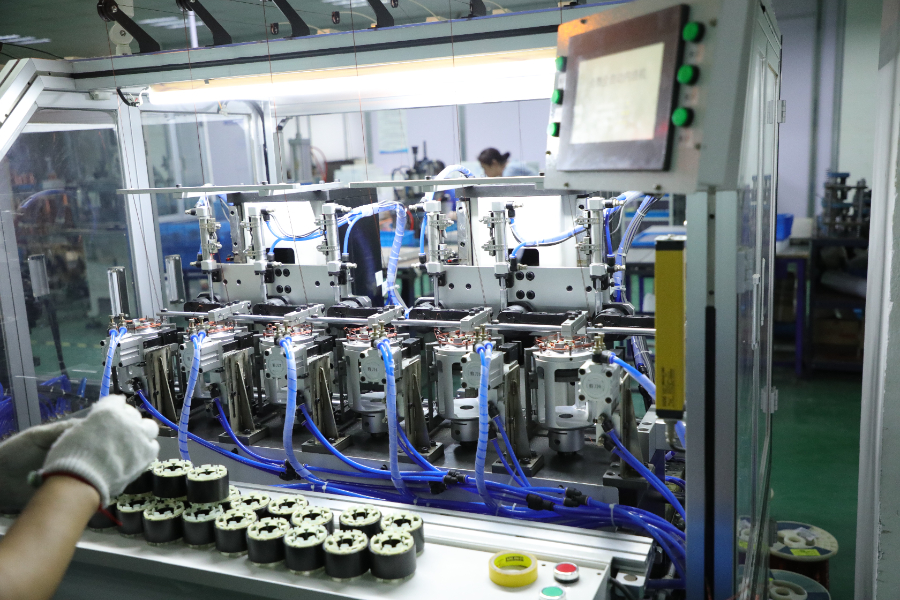

Production equipment
