57mm Nema23 Hybrid Stepper Motor 3 Leads 6 Wire 1.2 Step Angle 0.45KG
Specifications
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) |
| Max Axial Force | 15N |
| Step Angle | 1.2 ° |
| Lead Wire Number | 3,6 |
| Motor Weight(Kg) | 0.45/0.69/0.75/1.05/1.10 |
Product Description
57mm Nema23 Hybrid Stepper Motor 3 Leads 6 Wire 1.2 Step Angle 0.45KG
Stepping motors rotate at fixed angles with digitally controlled electronic pulses and they are able to start, stop and position with good control characteristics. Hybrid-type stepping motors consist of a rotor with permanent magnets and magnetic bodies, and by using ball bearings they can perform highly precise and reliable motions. Stepping motors can be used in wide range of applications, such as copy machines, multifunction printers, medical equipment, semiconductor manufacturing equipment, factory automation equipment, robots and other industrial equipment.
Electrical Specification
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (KG.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|
57BYGH350A-001 |
1.2 |
6 |
3.12 |
2.4 |
3.4 |
4.0 |
4.0 |
41 |
0.45 |
|
57BYGH350A-002 |
1.2 |
3 |
5.0 |
0.5 |
10 |
16 |
2.0 |
41 |
0.45 |
|
57BYGH350B-001 |
1.2 |
3 |
2.52 |
5.6 |
0.45 |
1.1 |
9.0 |
56 |
0.69 |
|
57BYGH350B-002 |
1.2 |
6 |
5.28 |
2.4 |
2.2 |
2 |
7.0 |
56 |
0.75 |
|
57BYGH350C-001-09 |
1.2 |
3 |
2.6 |
5.2 |
0.5 |
1.4 |
12 |
76 |
1.05 |
|
57BYGH350C-005-01 |
1.2 |
3 |
9.0 |
1.0 |
9.0 |
21 |
9 |
76 |
1.10 |
*Products can be customized by special request.

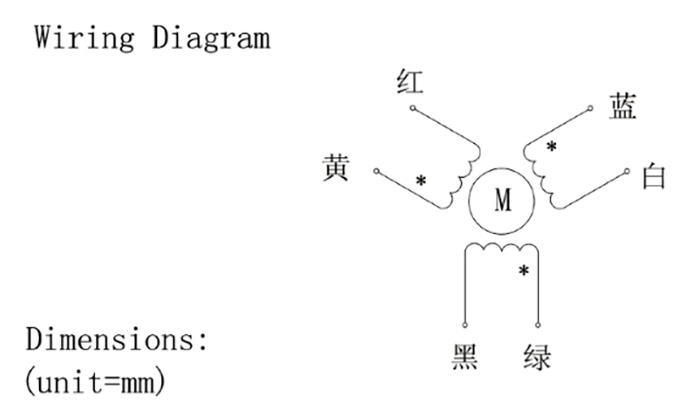

Wiring Diagram

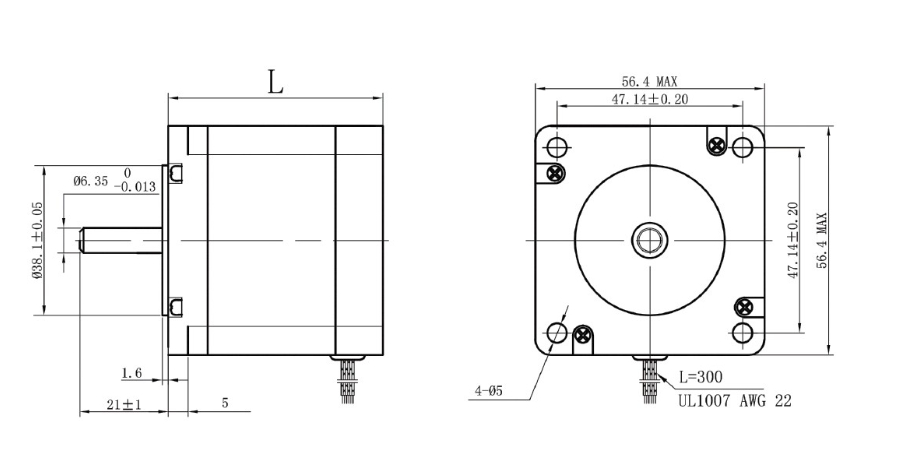

Mechanical Dimension

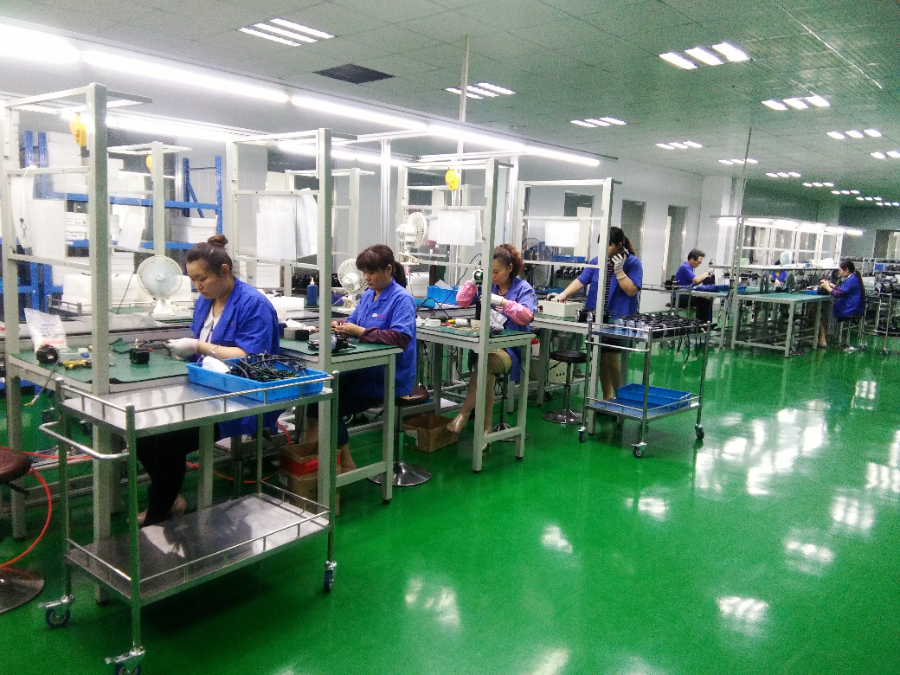

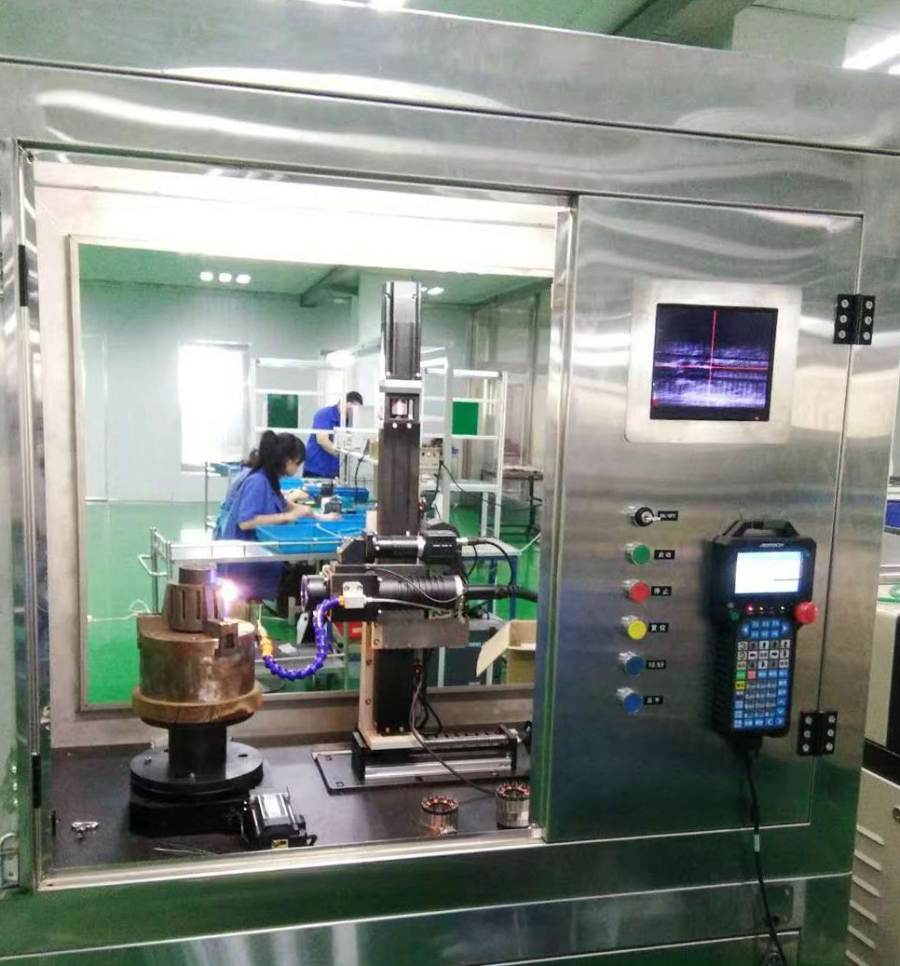

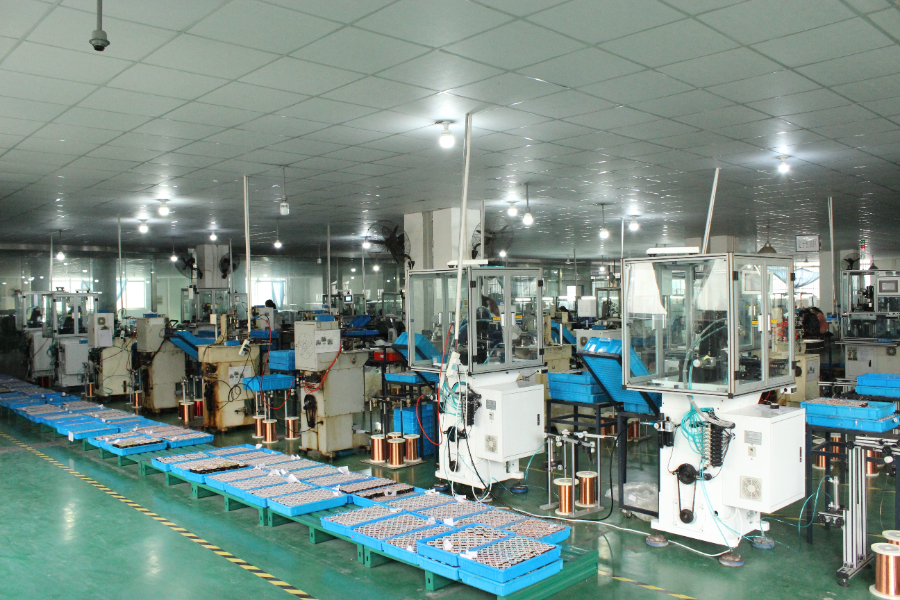

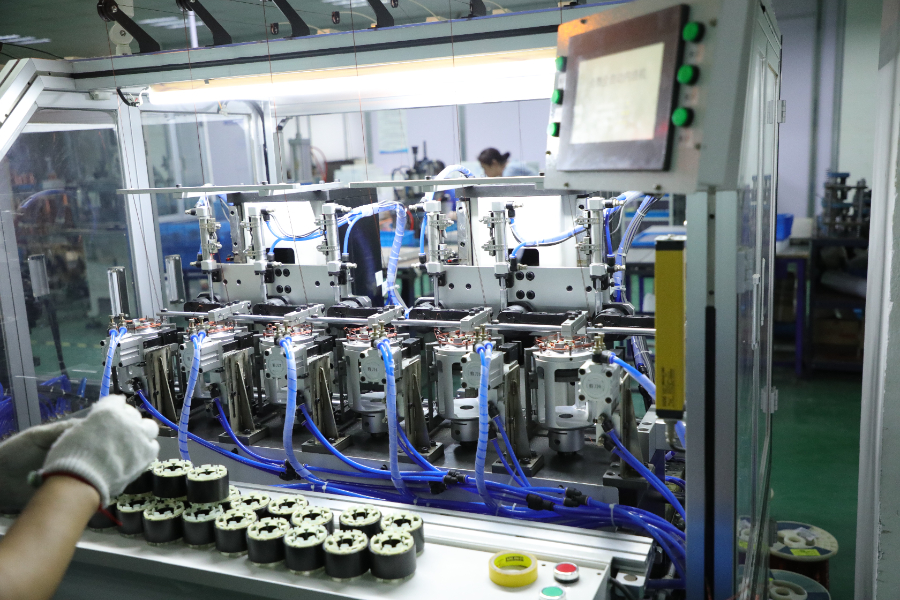

Production equipment
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
FAQ
1. Are you a factory?
Yes, we are a factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.
2. Can I test the sample?
Yes, samples and freight are charged.
3. Can I get a Customized product?
Sure, all the products can be customized based on special requests.
4. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
5. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
6. Is this your final price? May I have the discount?
Our price is the factory price. If you have a large quantity, we can negotiate about the discount.
7. What is the Warranty for your products?
Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
