57mm Nema23 Hybrid Stepper Motor 4 Leads 6 Wire 0.9 Step Angle 0.45KG
Specifications
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max |
| Resistance | 7.4Ω |
| Insulation Resistance | 100MΩ Min.500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) |
| Max Axial Force | 15N |
| Step Angle | 0.9 ° |
| Lead Wire Number | 4,6 |
| Motor Weight(Kg) | 0.45/0.56/0.70/1.0 |
| Holding Torque | 1.76 N.m |
Product Description
57mm Nema23 Hybrid Stepper Motor 4 Leads 6 Wire 0.9 Step Angle 0.45KG
The warranty of Hybrid Stepper Motor is 1 year.Origin place is Changzhou, China.And the hybrid stepper motors have RoHS, ISO certified.The step angle is 0.9 °.Industry-leading precision craftsmanship makes our Hybrid Stepper Motor longer service life, lower maintenance rates, and easier installation. It must be your first choice.
Electrical Specification
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (KG.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|
57BYGHM002-01 |
0.9 |
6 |
2.8 |
2.0 |
1.4 |
2.0 |
3.5 |
41 |
0.45 |
|
57BYGHM200-03A |
0.9 |
4 |
3.4 |
1.0 |
3.4 |
12 |
7.0 |
51 |
0.56 |
|
57BYGHM203-04 |
0.9 |
6 |
12 |
0.38 |
32.0 |
38 |
5.5 |
51 |
0.56 |
|
57BYGHM401-09 |
0.9 |
6 |
7.4 |
1.0 |
7.4 |
17 |
9.0 |
56 |
0.70 |
|
57BYGHM414 |
0.9 |
4 |
1.7 |
4.2 |
0.4 |
1.0 |
11 |
56 |
0.70 |
|
57BYGHM604-17 |
0.9 |
4 |
3.2 |
2.8 |
1.13 |
6.4 |
15 |
78 |
1.00 |
|
57BYGHM601-05 |
0.9 |
6 |
8.6 |
1.0 |
8.6 |
20 |
13 |
78 |
1.00 |
*Products can be customized by special request.

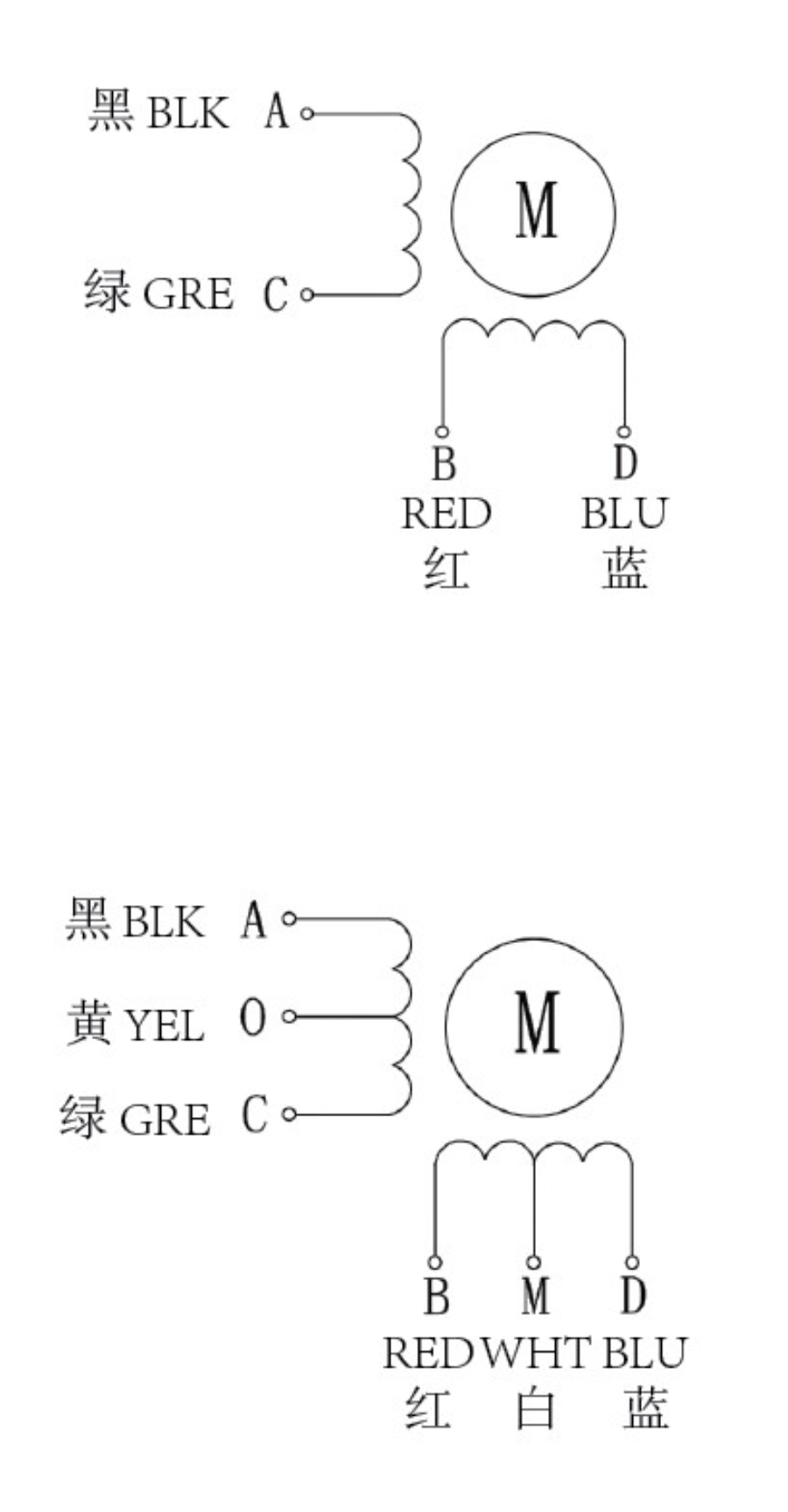

Wiring Diagram

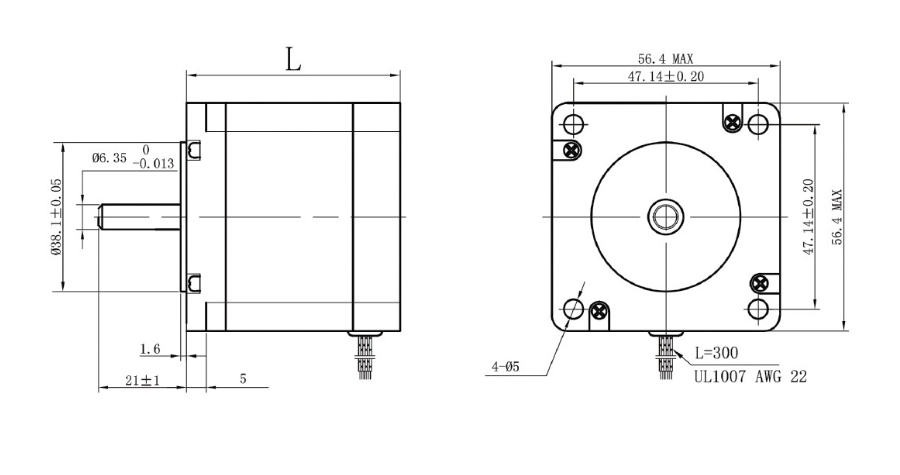

Mechanical Dimension

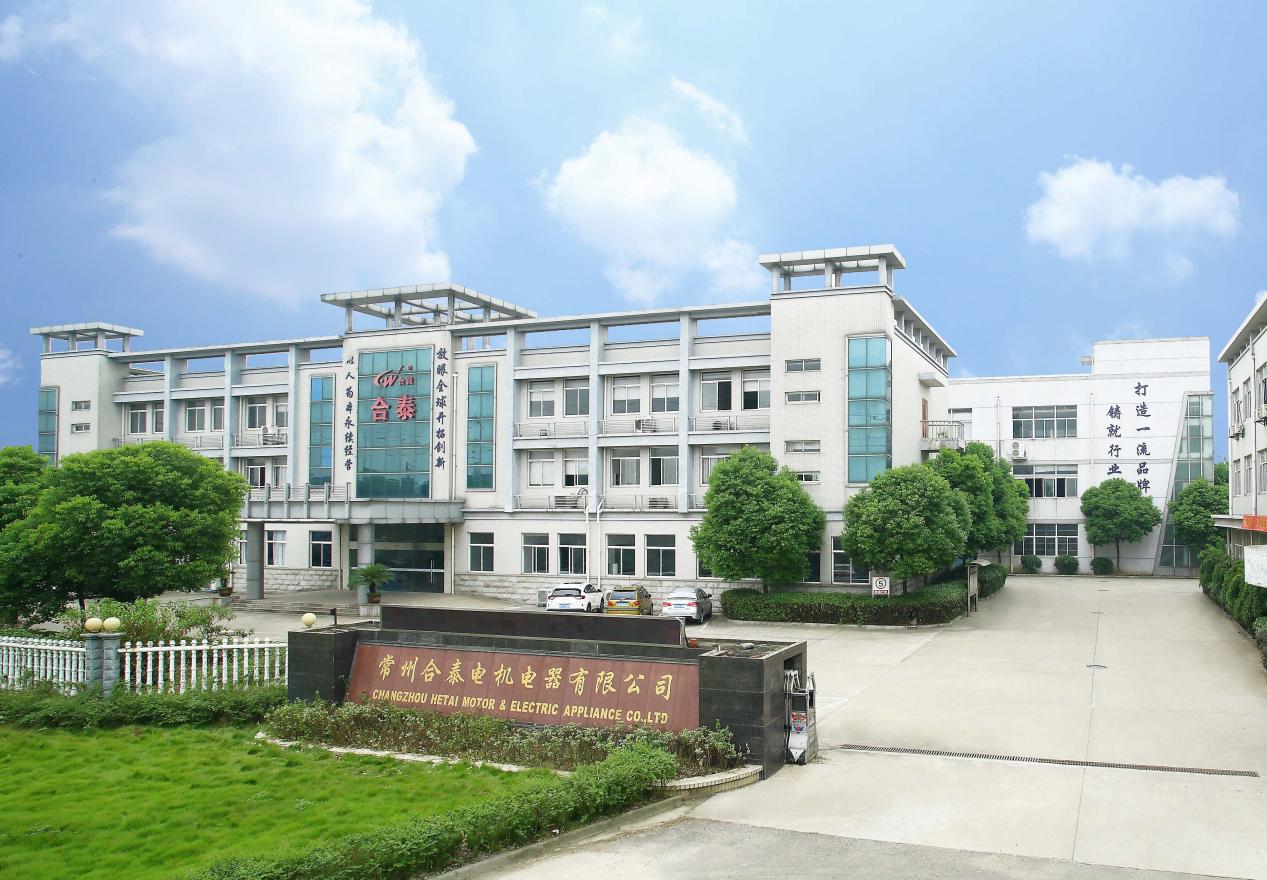

Hetai is located in ChangZhou, Jiangsu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.
