57mm Nema23 Hybrid Stepper Motor 4 Leads 6 Wire 1.8 Step Angle 0.45KG
Specifications
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) |
| Max Axial Force | 15N |
| Step Angle | 1.8 ° |
| Lead Wire Number | 4,6 |
| Motor Weight(Kg) | 0.45/0.65/0.70 |
Product Description
57mm Nema23 Hybrid Stepper Motor 4 Leads 6 Wire 1.8 Step Angle 0.45KG
NEMA 23 motor with a cylindrical body and square flange. The motor length is from 20-25mm, with a wide range of torque from 3 kg.cm to 9 kg.cm. The dielectric strength is 500VAC 1 minute and the insulation resistance is 100MΩ Min.500VDC.
Hybrid stepper motors are used in many different applications that require accurate and repeatable positioning and speed control. They are used in industries such as: Aerospace & Defense, Automation & Packaging, Medical, Printing & Engraving, Security & Surveillance Systems, Semiconductors, and Solar & Green Technology.
Electrical Specification
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (KG.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|
57BYGN001 |
1.8 |
6 |
12 |
0.38 |
32 |
25 |
3.0 |
41 |
0.45 |
|
57BYGN027 |
1.8 |
4 |
2.8 |
1.4 |
2.1 |
3.5 |
3.9 |
41 |
0.45 |
|
57BYGN200-19A |
1.8 |
6 |
5 |
1.0 |
5.0 |
11.5 |
5.8 |
51 |
0.65 |
|
57BYGN204 |
1.8 |
6 |
11.2 |
0.4 |
28 |
30 |
3.8 |
51 |
0.65 |
|
57BYGN400-11A |
1.8 |
4 |
5.5 |
1.1 |
5.0 |
12 |
7.8 |
56 |
0.70 |
|
57BYGN412 |
1.8 |
4 |
4.4 |
2.0 |
2.2 |
6.3 |
9.0 |
56 |
0.70 |

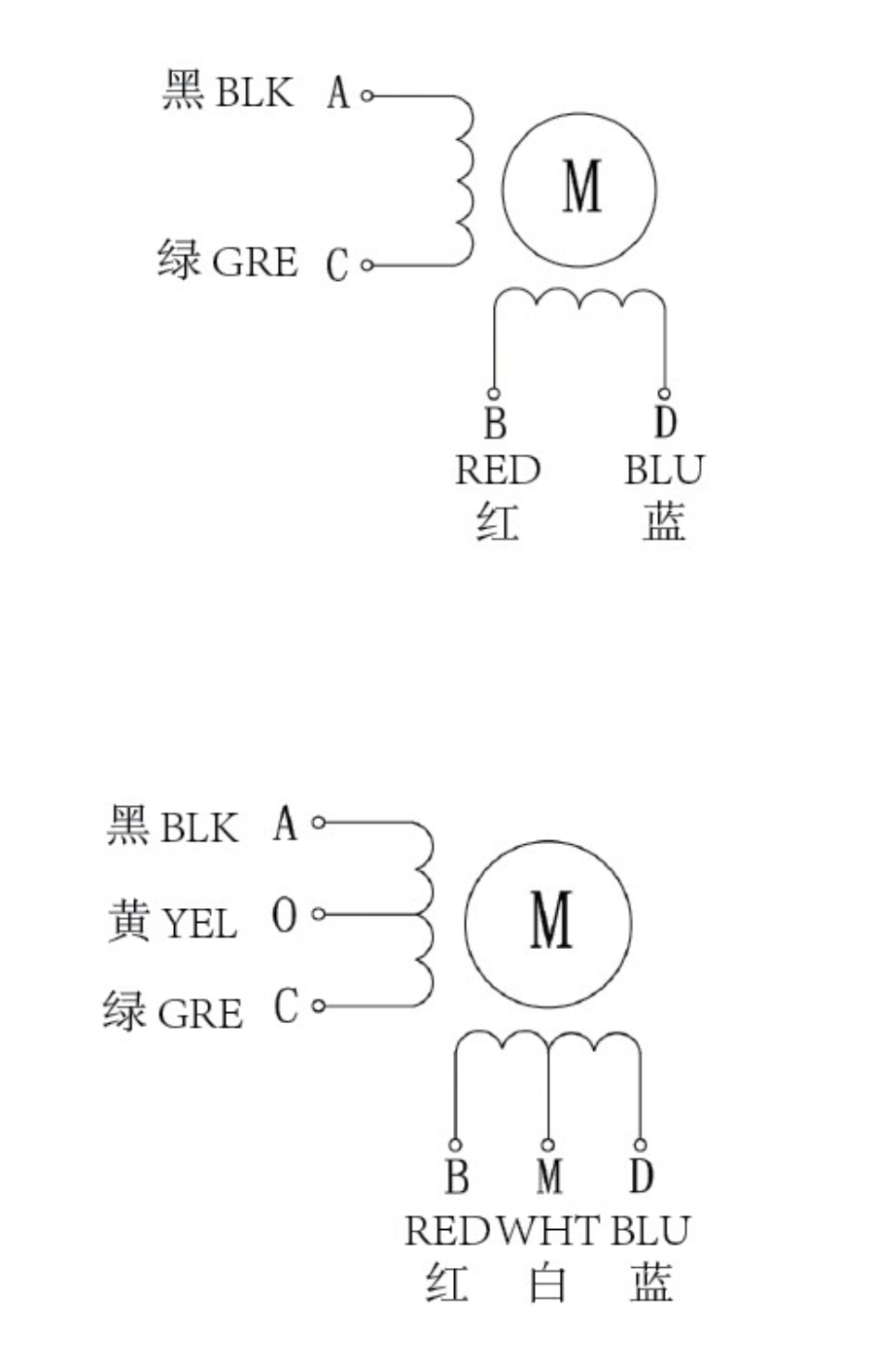

Wiring Diagram

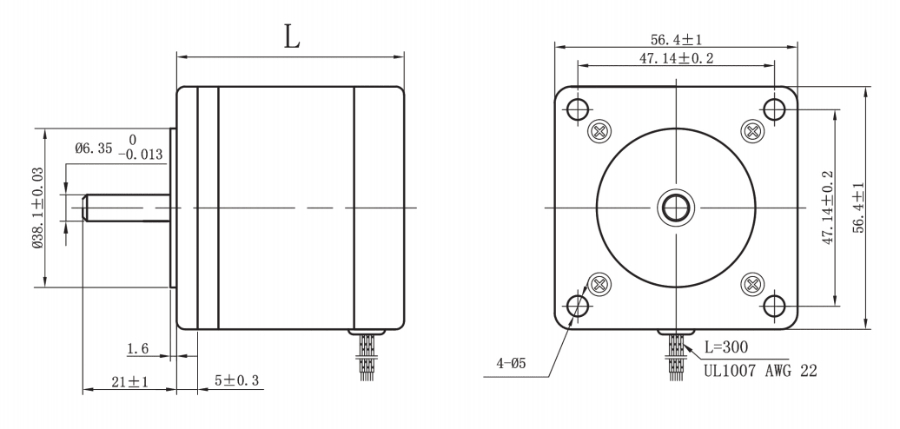

Mechanical Dimension
Application
-3D printing equipment.
-Textile machines.
-Printing presses.
-Gaming machines.
-Medical imaging machinery.
-Small robotics.
-CNC milling machines
