57mm Nema23 Linear Stepper Motor 4 Wires 1.8 Step Angle
Specifications
| Product Name | Linear Step Motor |
| Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 75N (20mm From Front Flange) |
| Max Axial Force | 15N |
| Step Angle | 1.8° |
| Lead Wire Number | 4 |
Product Description
57mm Nema23 Linear Stepper Motor 4 Wires 1.8 Step Angle
Tr outer diameter * lead (pitch) + thread heads
57BYGHL216-14 Tr 8*8(P2) 4 heads
Hetai supply various choice of linear actuator step motor.
The Features of the linear step motor
Linear motors can achieve high acceleration rates and long travel lengths with good thrust forces and extremely high positioning accurancies, while other drive mechanisms, such as belts, screws, or rack and pinions, must sacrifice at least one of these requirements in order to achieve the others. This is why linear motors are the preferred choice for highly dynamic applications such as semiconductor manufacturing.
Electrical Specification
|
MODEL |
STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (OHMS/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (KG.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|
57BYGHL013-15 |
1.8 |
4 |
2.7 |
1.5 |
1.8 |
4.0 |
4.0 |
41 |
0.45 |
|
57BYGHL216-10 |
1.8 |
4 |
3.3 |
1.7 |
1.95 |
6.0 |
10.0 |
51 |
0.65 |
|
57BYGHL401-03 |
1.8 |
4 |
6.0 |
0.6 |
10.0 |
32.0 |
9.0 |
56 |
0.70 |
|
57BYGHL602-07 |
1.8 |
4 |
10.4 |
0.8 |
13.0 |
42.0 |
19.8 |
78 |
1.00 |
|
57BYGHL815-01 |
1.8 |
4 |
7.36 |
1.6 |
4.6 |
16.0 |
20.0 |
84 |
1.13 |
*Products can be customized by special request.

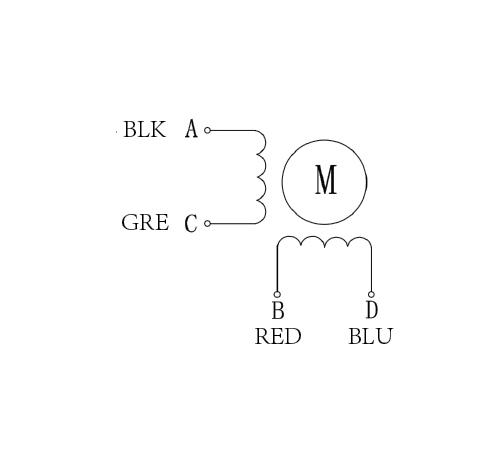

Wiring Diagram

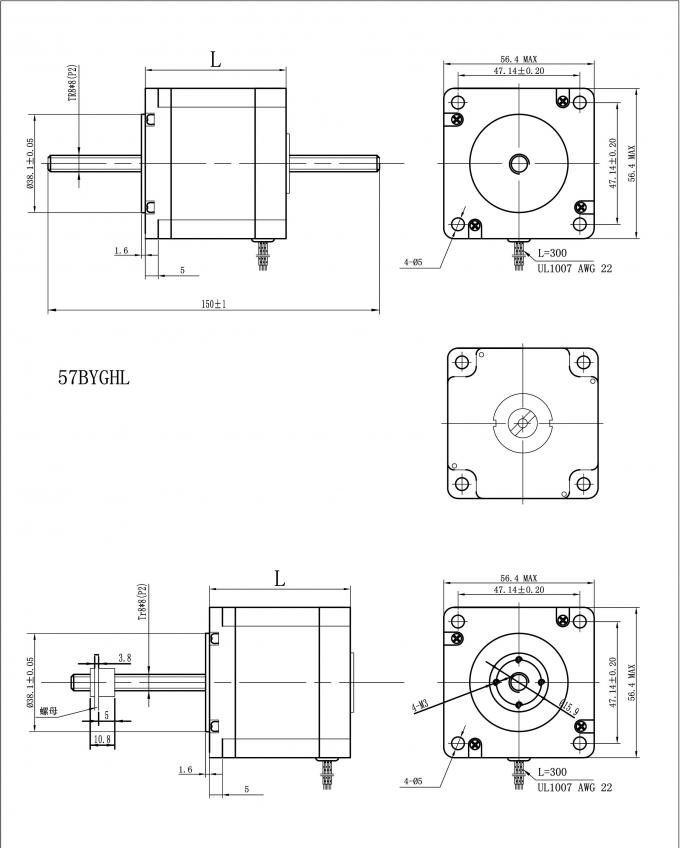

Mechanical Dimension
Production Process
Professional assembly line
Inspection process
Certificate
ROHS stepper
CE
ISO9001-EN
