85mm Nema34 Hybrid Stepper Motor 6.8 Nm 3 Lead Wires 1.2 Step Angle
Specifications
| Product Name | Hybrid Stepper Motor |
| Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max |
| Insulation Resistance | 100MΩ Min.500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Dielectric Strength | 500VAC 1 Minute |
| Max Radial Force | 220N (20mm From Front Flange) |
| Max Axial Force | 60N |
| Step Angle | 1.2° |
| Lead Wire Number | 3 |
| Motor Weight(Kg) | 1.7/2.9/4.0 |
Product Description
85mm Nema34 Hybrid Stepper Motor 2 Nm 3 Lead Wires 1.2 Step Angle
The hybrid stepper motor can be controlled by energizing every stator one by one. So the stator will magnetize & works like an electromagnetic pole that uses repulsive energy on the rotor to move forward. The stator’s alternative magnetizing as well as demagnetizing will shift the rotor gradually &allows it to turn through great control.
The stepper motor working principle is Electro-Magnetism. It includes a rotor which is made with a permanent magnet whereas a stator is with electromagnets. Once the supply is provided to the winding of the stator then the magnetic field will be developed within the stator. Now rotor in the motor will start to move with the rotating magnetic field of the stator. So this is the fundamental working principle of this motor
Electrical Specification
|
MODEL |
STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (N.M) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|
85BYGH350A-001 |
1.2 |
3 |
3.1 |
3.1 |
1.0 |
4.1 |
2.0 |
68 |
1.7 |
|
85BYGH350A-002 |
1.2 |
3 |
7.4 |
1.75 |
4.25 |
12.3 |
2.3 |
68 |
1.7 |
|
85BYGH350B-001-17 |
1.2 |
3 |
3.1 |
5.8 |
0.53 |
2.5 |
3.2 |
97 |
2.9 |
|
85BYGH350B-002-02 |
1.2 |
3 |
10.8 |
2.0 |
5.4 |
23.0 |
4.5 |
97 |
2.9 |
|
85BYGH350C-001-02 |
1.2 |
3 |
3.7 |
7.0 |
0.53 |
2.5 |
5.6 |
127 |
4.0 |
|
85BYGH350C-003 |
1.2 |
3 |
21.0 |
3.5 |
6.0 |
25.0 |
6.8 |
127 |
4.0 |
*Products can be customized by special request.

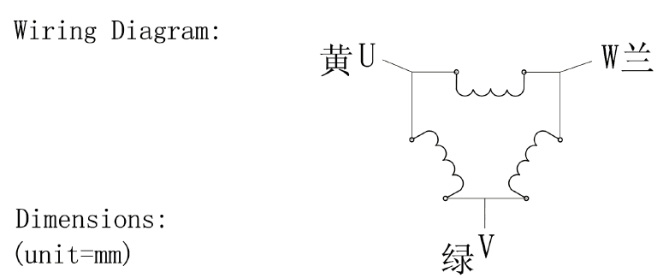

Wiring Diagram

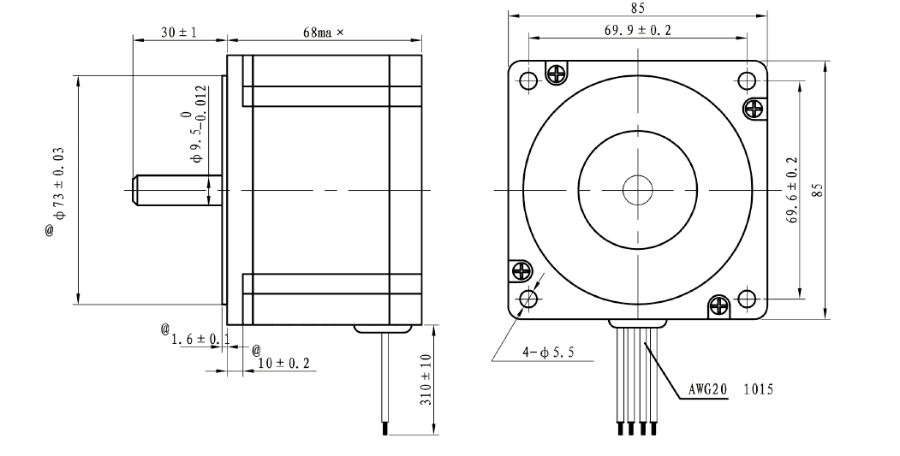

Mechanical Dimension
Production Process
Sophisticated production equipment
Certificate
