85mm Nema34 Hybrid Stepper Motor 10 Nm 4 Lead 8 Wires 1.8 Step Angle
Specifications
Product Name | Hybrid Stepper Motor |
Step Accuracy | ± 5% |
Temperature Rise | 80 ℃ Max |
Insulation Resistance | 100MΩ Min.500VDC |
Ambient Temperature | -20℃~+50℃ |
Dielectric Strength | 500VAC 1 Minute |
Max Radial Force | 220N (20mm From Front Flange) |
Max Axial Force | 60N |
Step Angle | 1.8° |

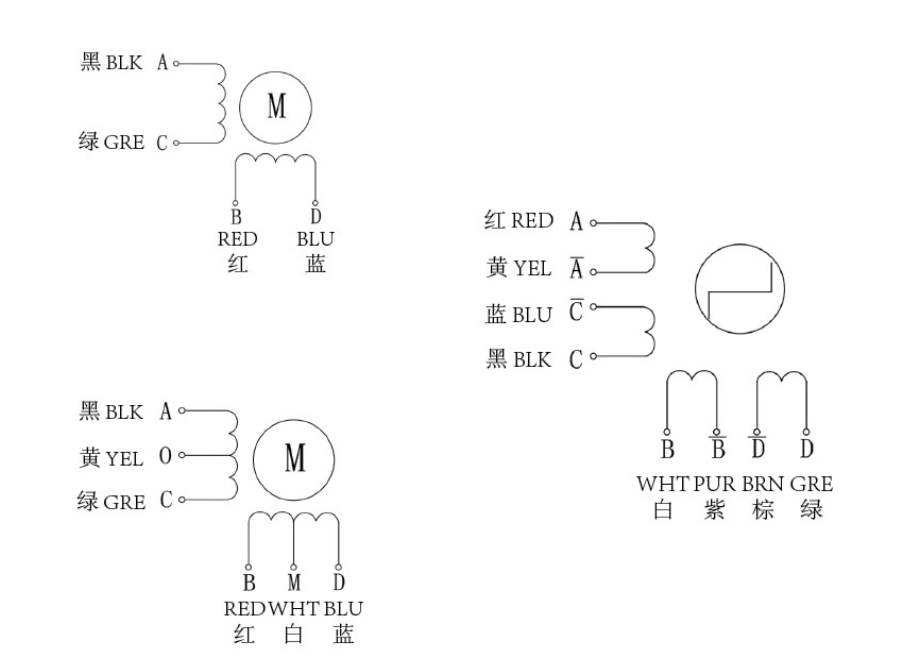

Lead Wire Number | 4/6/8 |
Product Description
85mm Nema34 Hybrid Stepper Motor 2 Nm 3 Lead Wires 1.2 Step Angle
Advantages:
1. The rotation angle of the motor is proportional to the input pulse.
2. The motor has full torque at a stand still(if the windings are energized)
3. Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is noncumulative from one step to the next.
4. Excellent response to starting/stopping/reversing.
5. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
6. The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
7. It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
8. A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
Electrical Specification
MODEL |
STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (N.M) |

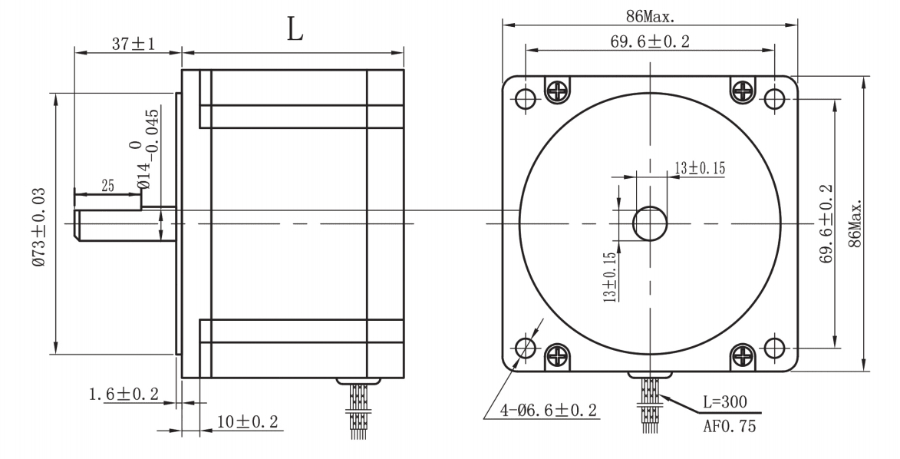

MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
85HS68-1404-001 |
1.8 |
4 |
5.6 |
1.4 |
4.0 |
24.0 |
2.8 |
68 |
1.8 |
85HS68-4004-001 |
1.8 |
4 |
2.4 |
4.0 |
0.6 |
2.8 |
2.8 |
68 |
1.8 |
85HS80-4208-001-02 |
1.8 |
8 |
4.6 |
2.97 |
1.55 |
6.76 |
3.2 |
80 |
2.3 |
85HS80-5504-001-06 |
1.8 |
4 |
1.6 |
4.0 |
0.4 |
3.5 |
3.0 |
80 |
2.3 |
85HS97-3008-001 |
1.8 |
8 |
4.8 |
3.0 |
1.6 |
8.0 |
5.0 |
97 |
2.8 |
85HS97-4006-001 |
1.8 |
6 |
3.4 |
4.0 |
1.0 |
5.0 |
4.4 |
97 |
2.8 |
85HS116-4208-001 |
1.8 |
8 |
5.0 |
4.2 |
1.2 |
6.5 |
6.0 |
116 |
3.6 |
85HS116-5004-001 |
1.8 |
4 |
4.5 |
5.0 |
0.9 |
11.0 |
8.5 |
116 |
3.6 |
85HS126-4008-001 |
1.8 |
8 |
6.0 |
4.0 |
1.5 |
8.0 |
6.8 |
126 |
3.8 |
85HS126-6408-001 |
1.8 |
8 |
1.53 |
6.4 |
0.536 |
2.86 |
6.2 |
126 |
3.8 |
85HS131-3004-001 |
1.8 |
4 |
5.1 |
3.0 |
1.7 |
18.0 |
9.0 |
131 |
4.2 |
85HS131-7004-001 |
1.8 |
4 |
2.8 |
7.0 |
0.4 |
4.0 |
9.0 |
131 |
4.2 |
85HS155-5004-001 |
1.8 |
4 |
4.0 |
5.0 |
0.8 |
10.0 |
11.0 |
155 |
5.0 |
85HS155-6504-001 |
1.8 |
4 |
3.9 |
6.5 |
0.6 |
7.0 |
10.0 |
155 |
5.0 |
*Products can be customized by special request.
