Micro 22mm 0.87 inch Gearbox Brushless Motor 24 V 75 RPM With ROHS CE ISO

Short Description:

Place of Origin: China

Brand Name: HeTai

Certification: CE ROHS ISO

Model Number: 22BL202AG64

Minimum Order Quantity: 50

Price: USD

Packaging Details: Carton with Inner Foam Box, Pallet

Delivery Time: 25 DAYS

Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000 PCS/MONTH

Send email to us

Product Detail

Product Tags

Specifications

Product Name	Gearbox Brushless Motor
Nominal Voltage	24V
Rated Speed	75±10%
Torque Constant	0.033 N.m/A
Line To Line Resistance	9 OHMS
Rated Torque	0.8 Nm
Thrust Play Of Shaft	≤0.4
Shaft Axial Load	≤15N
Reduction Ratio	1/64
Torque Constant	0.033 N.m/A
Backlash At No-load	≤15°
Insulation Class	F

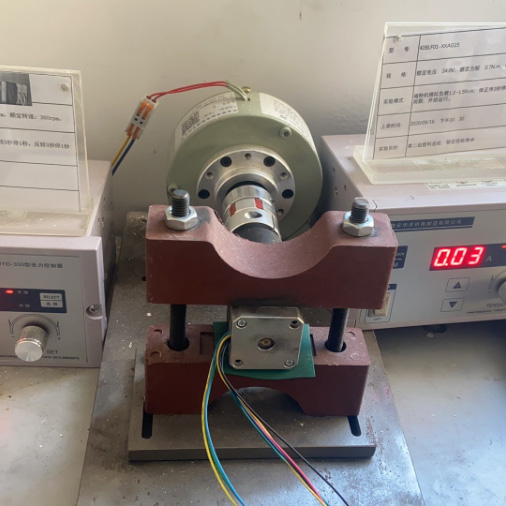

Product Description

Small size dc gear motor with low speed and big torque 22mm gear motor provide 0.8 Nm torque and more reliable Suitable to small space.

Brushless gearbox motors are smaller, lighter, quieter, and have a longer operating life than their brushed counterparts, also offering superb performance in terms of efficiency and comparability. However, the technical difficulties of designing small motors to operate at low speeds of a few hundred rpm make a geared essential in such applications. With the addition of a geared, the motor is able to deliver high torque and low speed while still maintaining all of the benefits of a brushless gearbox motor.

The design of a gearbox electric motor is determined by factors that include its required output speed and torque and the space available for installation. Fortunately, this equipment design is made easier by the wide range of choices that brushless gearbox motors offer for these basic performance parameters.

Electrical Specification

Manufacture Model		22BL202AG64
Line to Line Resistance	OHMS	9
Line to Line Inductance	MH	2.2
Nominal Voltage	VDC	24
No Load Speed	RPM	7000±10%
No Load Current	Amps	0.3
Rated Torque	N.m	0.02
Rated Speed	Rpm	4800±10%
Back Emf Constant	V/kRPM	3.5
Torque Constant	N.m/A	0.033
Insulation Class		F
MOTOR SPECIFICATIONS WITH PLANETARY GEAR0.65
Rated Torque	N.m	0.8
Rated Speed	Rpm	75±10%
Ratio		64:1

*Products can be customized by special request.

Wiring Diagram

ELECTRICAL CONNECTION TABLE
FUNCTION	COLOR
+5V	RED	UL1332 28AWG
HALL A	BROWN
HALL B	WHITE
HALL C	PURPLE
GND	BLACK
PHASE A	YELLOW
PHASE B	GREEN
PHASE C	BLUE
NTC	ORANGE

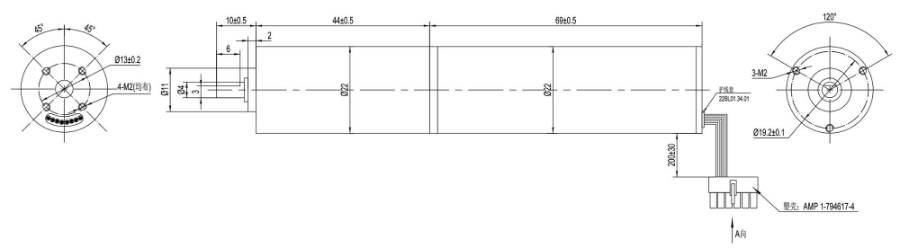

Mechanical Dimension

Out diameter 22mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder Metallurgy	Porous Bearings	≤35	≤15	≤80	≤0.08	≤0.4	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length L (mm)	Weight(g)	Number of gear trains
1/4	0.1	0.3	81%	13.9	29	1
1/4.75
1/16
1/19	0.4	1.2	72%	32.4	52	2
1/22
1/26
1/76	0.8	2.5	75%	43.9	73	3
1/88
1/104
1/121
1/144
