Product Name Brushless Gearbox Motor
Gearbox diameter 36mm or 42mm
Nominal Voltage 24 V
Ambient Temperature -20℃~+50℃
Rated speed 250 rpm
Radial load ≤120N
Shaft Axial load ≤80N
Hall Effect Angle 120° Electrical Angle
Protection Level IP40
Certification CE ROHS ISO
Rated Output Power 18 W

Product Description

NEMA 17 24 V 42MM*42MM customized Gearbox Brushless Motor and matching amplifiers for motion applications requiring higher speeds.

A 12V Motor or 24V Motor can produce significantly more torque with the addition of a planetary gearbox. If your application requires additional torque, be sure to check out or wide selection of direct current gear motor options. As a renowned dc motor manufacturer, we are able to offer either brushed or brushless gearbox motors with our planetary gear motors. For devices and applications that require additional control, we can provide a gear motor w/encoder. Check out the planetary gear motor 24v that we designed and manufactured for articulating tv mounts.

Electrical Specification

Nema 17 Brushless Gearbox Motor Electrical Specification

Motor Part
Manufacture Model 42BLF01-027AG16 42BLF01-031AG54
Gearbox Diameter mm 36mm  42mm
Resistance OHMS 2.2 2.2
Nominal Voltage VDC 24 24
No Load Speed RPM 5000± 10% 5000± 10%
No Load Current Amps Max 0.8 0.8
Rated Speed Rpm 4000± 10% 4000± 10%
Rated Torque N.m 0.063 0.063
Peak Torque N.m 0.12 0.12
Torque Constant N.m/A 0.042 0.042
Back EMF constant V/kRPM 4.4 4.4
SPECIFICATIONS WITH PLANETARY GEAR
Rated Torque N.m 0.7 2.2
Rated Speed Rpm 250± 10% 74
RATIO   16:1 54:1
Rated Output Power W 18

17

*Products can be customized by special request.

Wiring Diagram

FUNCTION COLOR
+5V RED UL1007 26AWG
HALL A YELLOW
HALLB GREEN
HALLC BLUE
GND BLACK
PHASE A YELLOW UL3265 22AWG
PHASE B GREEN
PHASE C BLUE

Mechanical Dimension

Mechanical Dimension
Mechanical Dimension2

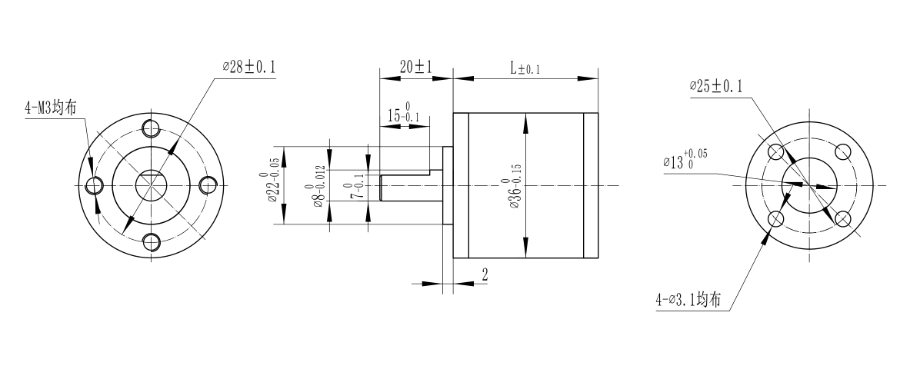

Planetary Gearbox 36mm

Housing material Bearing at output Radial load(10mm from flange)N Shaft axial load(N) Shaft press-fit force max(N) Radial play of shaft(mm) Thrust play of shaft(mm) Backlash at no-load (°)
Powder metallurgy sleeve bearings ≤120 ≤80 ≤500 ≤0.03 ≤0.1 ≤1.5
Reduction ratio Rated tolerance torque (Nm) Max momentary tolerance torque (Nm) Efficiency% Length (mm) Weight(g) Number of gear trains
1/4 0.3 1.0 81% 24.8 145 1
1/5
1/16 1.2 3.5 72% 32.4 173 2
1/20
1/25
1/53 2.5 7.5 65% 41.9 213 3
1/62
1/76
1/94
1/117

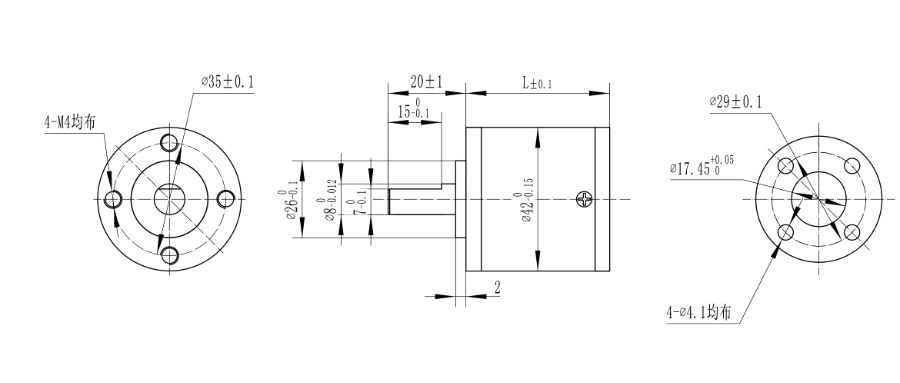

GEARBOX 42mm Powder metallurgy

Planetary Gearbox 42mm
Reduction ratio Rated tolerance torque (Nm) Max momentary tolerance torque (Nm) Efficiency% Length (mm) Weight(g) Number of gear trains
1/4 1.0 3.0 81% 32.5 170 1
1/6
1/15 4.0 12 72% 46.3 207 2
1/18
1/25
1/36
1/54 8.0 25 65% 60.1 267 3
1/65
1/90
1/112
1/155
1/216 10 30 65% 60.1 267

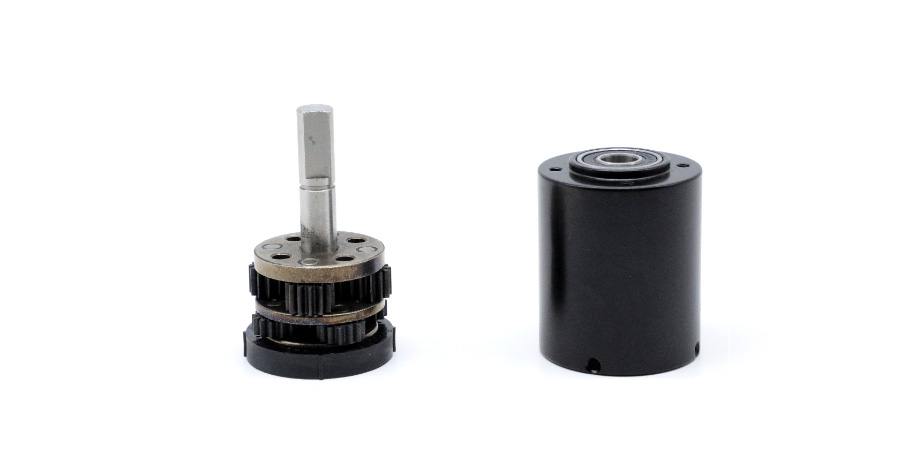

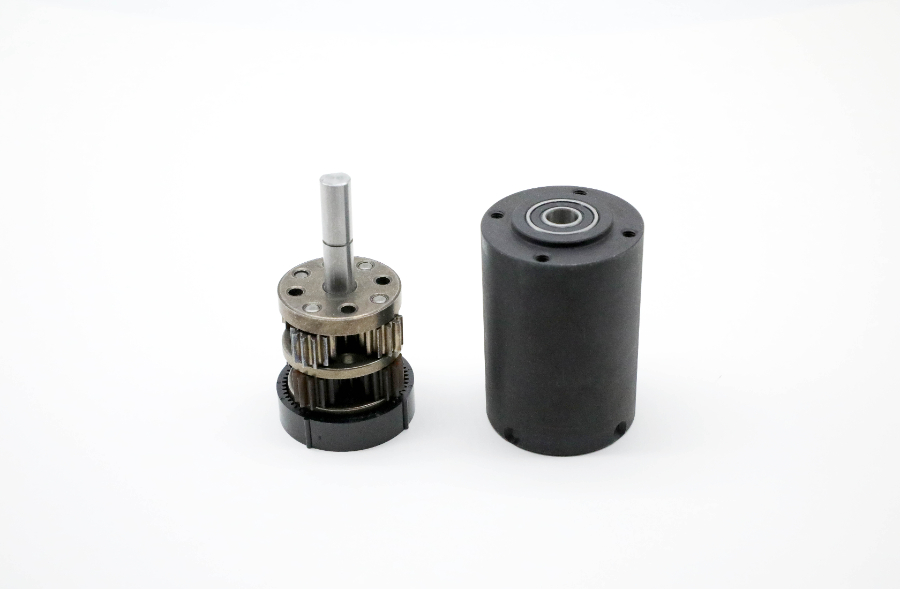

Gearbox Production
